• Reflective Thermal Protection
The aluminum foil surface helps reduce radiant heat exposure to cables and wire harnesses, providing additional thermal protection near heat sources.

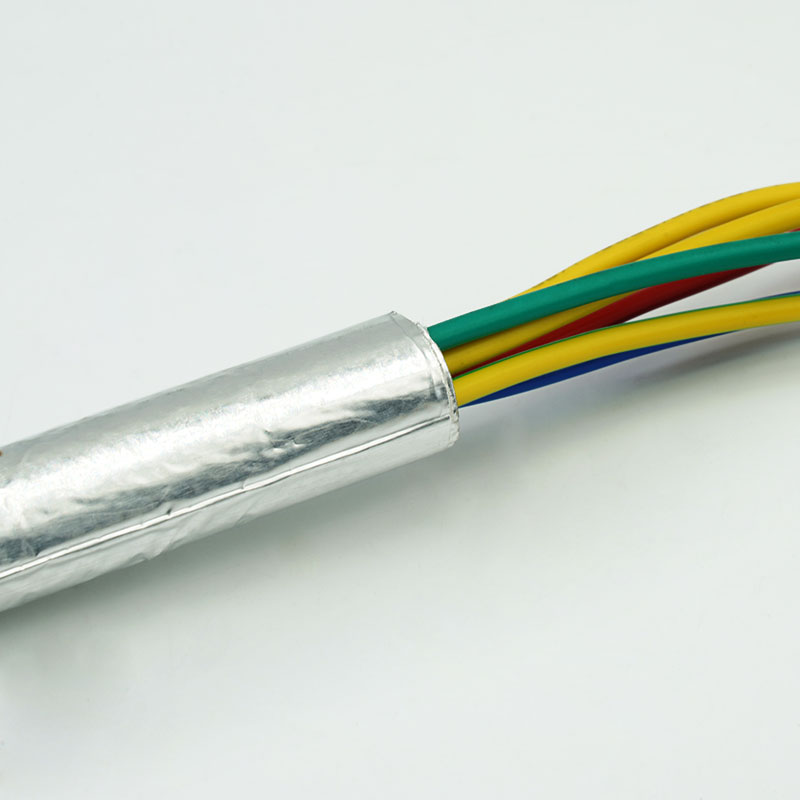

• Convenient Wraparound Installation
The wraparound design allows installation over existing cables and wire harnesses without disconnecting connectors, simplifying assembly, inspection and maintenance.
• Self-Adhesive Closure
The self-adhesive inner layer works with the overlapping wrap to help secure the sleeve in position and reduce the need for additional fastening materials.
• Multifunctional Cable Protection
The aluminum foil and fiberglass composite construction combines thermal protection, external mechanical shielding and EMI/RFI protection features.
• Flexible Fit for Different Harness Sizes
Multiple inside diameters and spread widths accommodate different harness sizes and wrapping requirements.
• Practical for Maintenance and Retrofitting
The sleeve can be installed without rerouting cables, making it practical for equipment upgrades, localized heat protection and maintenance projects.

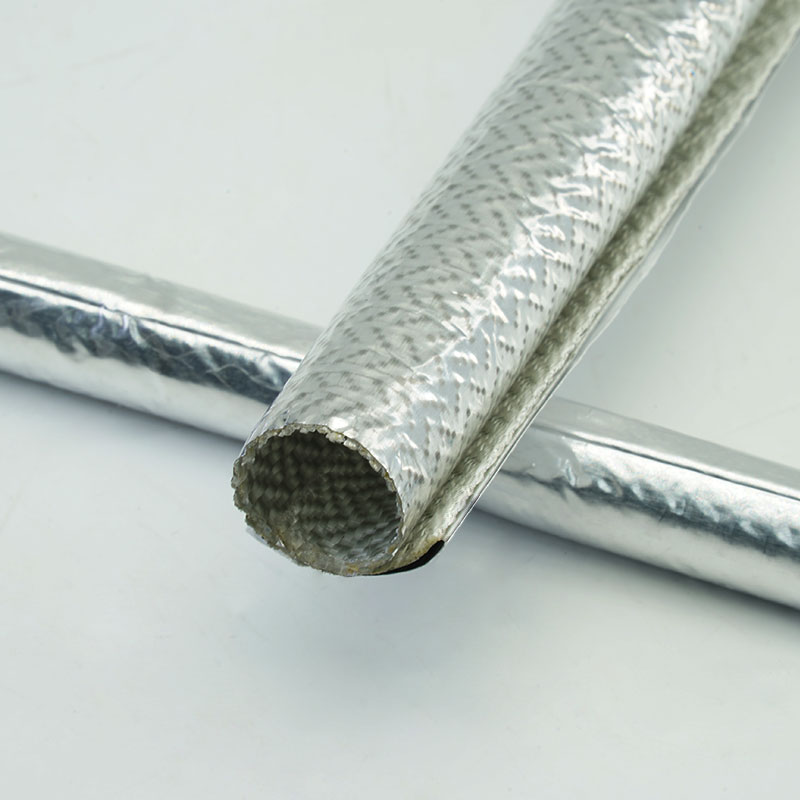

• Aluminum Foil Laminated Surface
Features an aluminum foil laminated outer surface that reflects radiant heat and helps limit heat transfer toward protected cables.
• Fiberglass Composite Construction
Combines aluminum foil, fiberglass and PET materials to provide thermal resistance, structural stability and practical flexibility.

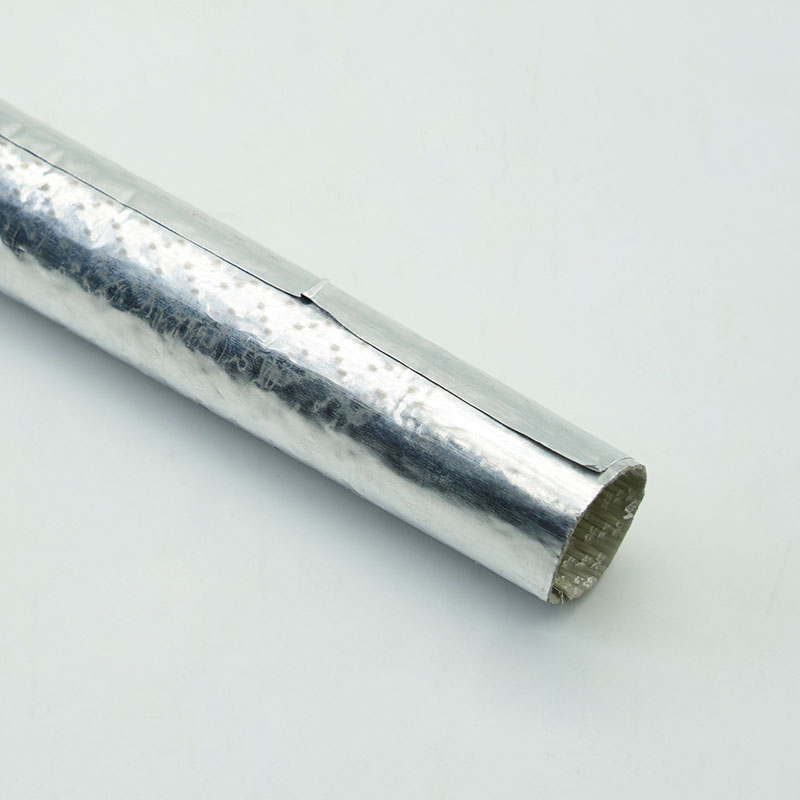

• Self-Wrapping Design
The open wraparound construction allows the sleeve to be fitted along existing cables and harnesses.
• Integrated Adhesive Layer
An integrated self-adhesive inner layer works with the overlapping construction to support secure and convenient installation.

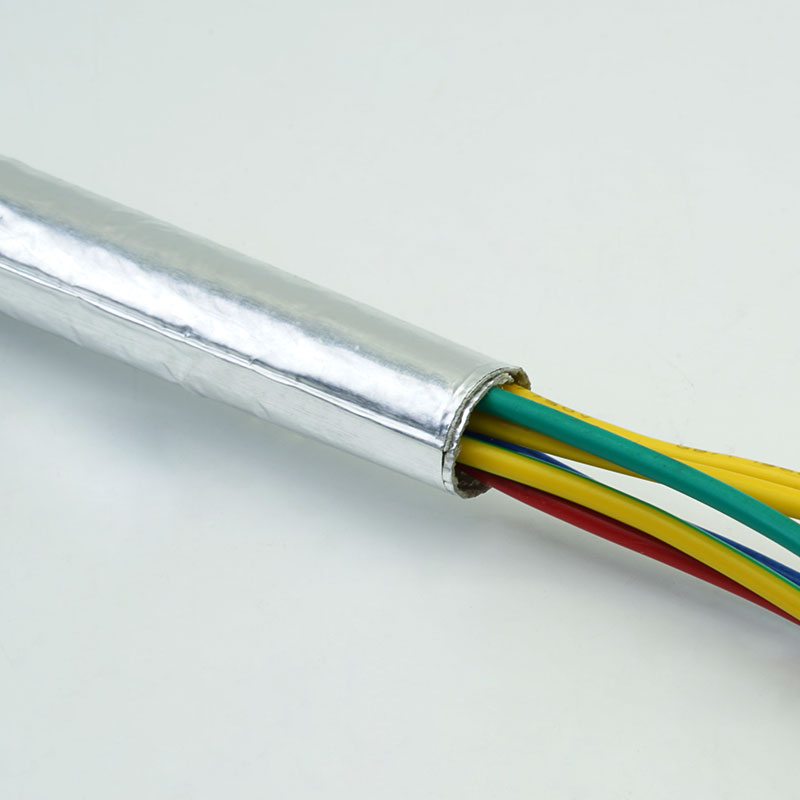

• Overlapping Coverage
Designed with an overlap of at least 35% to help maintain continuous coverage around cable bundles.
| Material |
Aluminum foil + glass fiber + PET |
| Working Temperature |
−40°C to +200°C |
| Flammability |
FMVSS 302 |
| Heat Insulation |
Heat insulation performance≥80℃,refer to SAE J2302 |
| Oil Resistance |
No delamination or degradation after specified test, referring to GMW15608 |
| High-Temperature Aging |
Without delamination at 168H / 175 ℃,refer to GMW15608 |
| Low Temperature Flexibility |
No cracks and no delamination on the sample after -at 40 ℃ / 24H test,refer to GMW15608 |
| Coincidence Rate |
≥35% |
| Color |
Outer surface: Silver (aluminum foil) ; Inner surface: White (adhesive layer)
|
| Cutting Tool |
Scissor |
| Part No. |
Diameter |
Spread Width
(mm) |
Overlap |
Packing Length
(m/spool) |
| I.D. (mm) |
O.D. (mm) |
| GF-AS-N-006-WH/SR |
6 ± 2 |
8 ± 2 |
30 ± 3 |
≥35% |
1m / pcs
Within 1M
can be cut
and
packaged
according
to customer
length
|
| GF-AS-N-008-WH/SR |
8 ± 2 |
10 ± 2 |
37 ± 3 |
≥35% |
| GF-AS-N-010-WH/SR |
10 ± 2 |
12 ± 2 |
51 ± 3 |
≥35% |
| GF-AS-N-013-WH/SR |
13 ± 2 |
15 ± 2 |
60 ± 3 |
≥35% |
| GF-AS-N-016-WH/SR |
16 ± 2 |
18 ± 2 |
70 ± 3 |
≥35% |
| GF-AS-N-019-WH/SR |
19 ± 2 |
21 ± 2 |
90 ± 3 |
≥35% |
| GF-AS-N-025-WH/SR |
25 ± 2 |
27 ± 2 |
108 ± 5 |
≥35% |
| GF-AS-N-032-WH/SR |
32 ± 2 |
34 ± 2 |
132 ± 5 |
≥35% |
| GF-AS-N-038-WH/SR |
38 ± 2 |
40 ± 2 |
158 ± 5 |
≥35% |
| GF-AS-N-043-WH/SR |
43 ± 2 |
45 ± 2 |
190 ± 5 |
≥35% |
• Automotive Wire Harnesses
Protects automotive wire harnesses routed near engine-compartment heat sources and hot components by helping reduce radiant heat exposure.
• Industrial Machinery Wiring
Provides localized thermal protection for cables and control harnesses routed near heat-generating components in industrial machinery.
• Electrical Control Systems
Supports electrical cable routing where heat exposure and electromagnetic interference are concerns, subject to shielding and grounding verification.
• Power and Electronic Equipment
Helps protect power cables and connecting wires near heat-generating components from external radiant heat.
• Cable Bundles Near Hot Surfaces
Adds reflective thermal protection to cable bundles routed near hot pipes, equipment housings and other heat sources.
Measure the outside diameter of the cable or wire harness, including the largest section that requires protection. Select a suitable nominal sleeve diameter and spread width, allowing sufficient overlap after installation without excessive tension.
Check the operating temperature, distance from heat sources, bend radius, vibration and possible oil exposure. For applications requiring EMI/RFI protection, consider the complete shielding arrangement, including overlap, electrical continuity and grounding.
Ensure the installation surface is clean and suitable for the adhesive layer. For demanding applications, verify the finished assembly under actual operating conditions before bulk production.
• Sizes & Dimensions - Multiple standard inside diameters and spread widths are available to accommodate different cable bundle sizes and wrapping requirements.
• Material & Construction Options - For special projects, composite construction, wrap width and adhesive attachment requirements can be reviewed according to the application, subject to technical approval.
• Packaging - Custom piece packing, quantity kits, product labels and packaging options can be arranged to support assembly, storage and delivery requirements.
• Raw Material Verification - Aluminum foil, fiberglass and PET composite materials are verified against the approved product construction and manufacturing requirements.
• Lamination Quality Control - Lamination integrity and surface uniformity are checked to minimize delamination, wrinkles and localized defects.
• Dimensional Inspection - Inside diameter, outside diameter, spread width and overlap requirements are checked against the specified tolerances.
• Cutting and Appearance Inspection - Cut lengths and edge quality are verified, while surfaces are inspected for damage, contamination, excessive wrinkles and other visible defects.
• Final Inspection and Traceability - Part numbers, dimensions, cut lengths, quantities, labels and packaging are verified before shipment.
Frequently Asked Questions
01. What is GF-AS-N self-adhesive aluminum foil fiberglass sleeving used for?
GF-AS-N is used to provide reflective thermal protection for cables and wire harnesses exposed to nearby heat sources. Its aluminum foil composite construction also supports applications where EMI/RFI shielding is a design consideration.
02. Can the sleeve be installed without removing cable connectors?
No. The self-wrapping design allows the sleeve to be opened and fitted around existing cables without disconnecting connectors.
03. How does the aluminum foil surface provide thermal protection?
The reflective aluminum foil surface helps reduce radiant heat transfer toward the protected cables. Actual performance depends on the heat source, exposure conditions and installation arrangement.
04. How do I choose the correct sleeve diameter?
Measure the cable bundle outside diameter and select a suitable nominal size and spread width. Confirm that the sleeve maintains the required overlap without excessive tension after installation.
Request a Sample or Quote
Please share the cable bundle diameter, required sleeve length, operating temperature, distance from nearby heat sources, installation conditions and estimated order quantity. MJ FLEX can help evaluate suitable GF-AS-N sizes, wrapping coverage, cut lengths and packaging options, and provide samples or quotations based on your project requirements.
