• Create Dependable Coverage Over Exposed Hose Jackets
The flat band presents a broad protective surface where hoses rub against frames, floors and equipment structures.
• Control Protection Through the Winding Pitch
Installers can vary the overlap to reinforce a contact zone without changing the entire hose route.
• Retrofit Protection Around Connected Lines
The open hydraulic spiral wrap is wound onto the assembly without passing over end fittings.
• Simplify inspection and localized replacement
Wear remains visible on the outer wrap, allowing damaged sections to be renewed after the hose is checked.

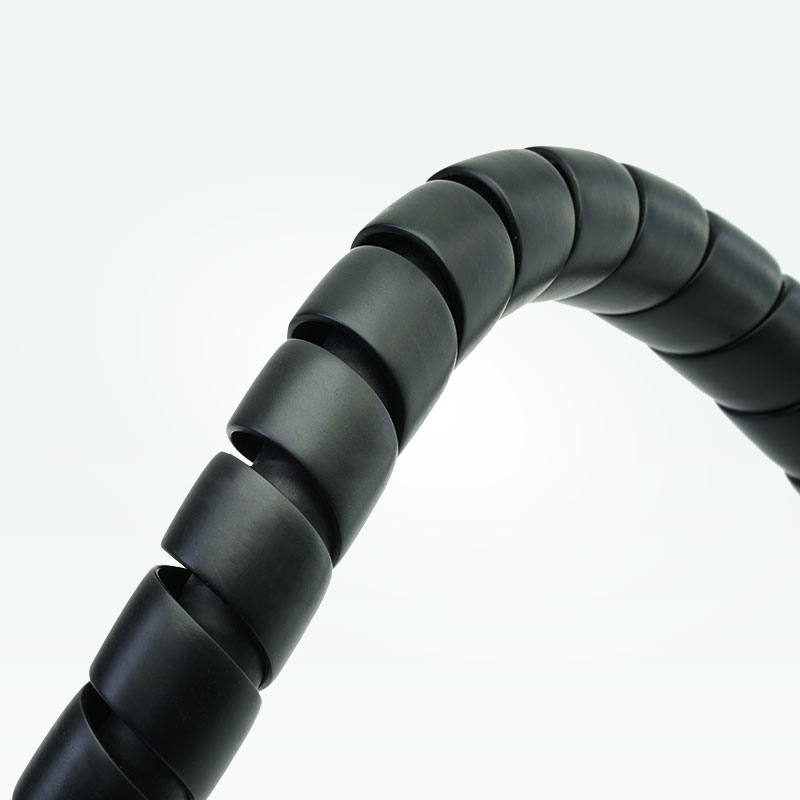

1. Flat Surface Design
The wide, flat profile provides uniform external coverage, helping distribute contact pressure and reduce localized wear.
2. Durable PP Material
Made from polypropylene, offering abrasion resistance, toughness and structural stability for hose protection in industrial and mobile equipment.
3. Flexible Spiral Construction
The semi-rigid spiral construction provides mechanical protection while allowing hoses to bend and move with equipment.

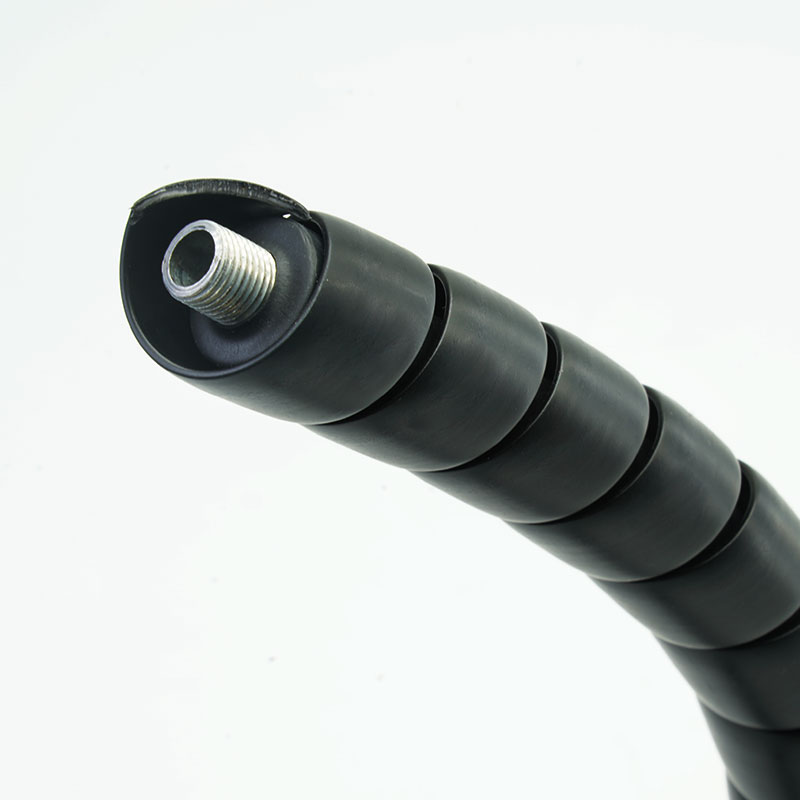

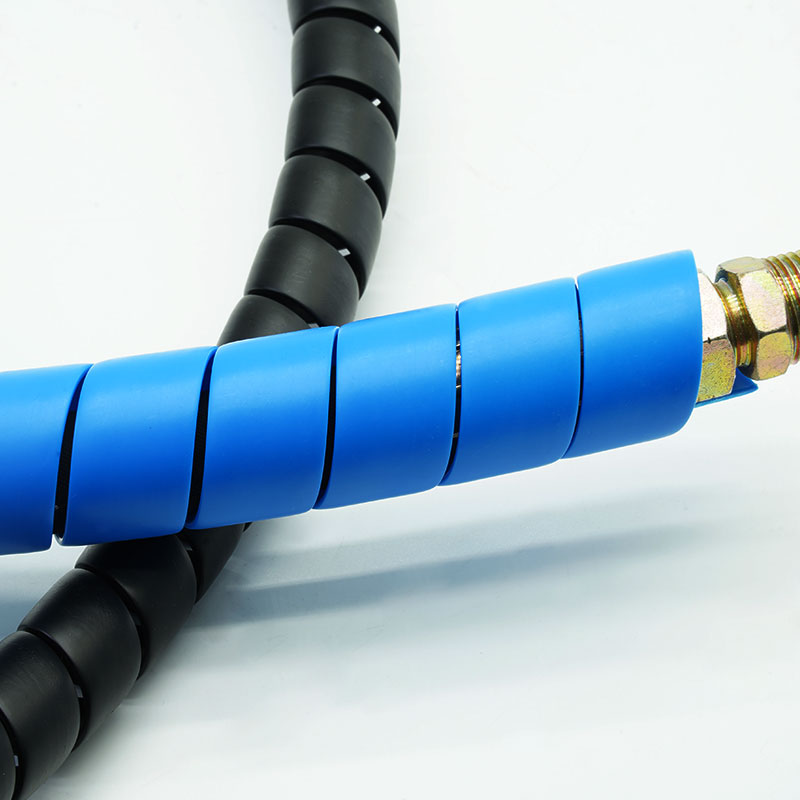

4. Easy Retrofit Installation
The open spiral design wraps around connected hoses without removing fittings, simplifying installation and maintenance.
5. Multi-Hose Protection
Suitable for individual hoses or compatible bundles, helping reduce direct friction against surrounding components and adjacent hoses.
6. Customizable Specifications
Available in various sizes, with options for custom spiral diameters, band thicknesses, pitch, colors and packaging to meet project requirements.
| Material |
Polypropylene (PP) |
| Working Temperature |
-40°C to +105°C |
| Tensile Strength |
≥25 MPa in accordance with GB/T 1040.2-2022 |
| Aging Resistance |
Refer to GB/T 16422.3-2022 |
| Flammability |
Non-Flame Retardant, UL94 V2 |
| Low and High Temperature Resistance |
After 24 h aging at 100°C/-40°C, fill with filler and conduct impact test under 100°C/-40°C environment; no cracks or fractures. |
| Standard Color |
Black |
| Certification |
RoHS, REACH |
| Cutting Tool |
Hot knife |
| Part No |
ID
(mm) |
OD
(mm) |
Wall Thickness
(mm) |
Screw Pitch
(mm) |
Bundle Dia
(mm) |
Packing Length
(m/spool) |
| HPS-PP-SX-007.8-BK-P |
7.8 |
10 |
1 |
12 |
8~12 |
50 |
| HPS-PP-SX-009.6-BK-P |
9.6 |
12 |
1 |
12 |
10~14 |
50 |
| HPS-PP-SX-012-BK-P |
12 |
14 |
1 |
12 |
12~16 |
50 |
| HPS-PP-SX-013.4-BK-P |
13.4 |
16 |
1 |
13 |
14~18 |
50 |
| HPS-PP-SX-016-BK-P |
16 |
18.8 |
1.4 |
14.5 |
16~20 |
50 |
| HPS-PP-SX-018-BK-P |
18 |
21.2 |
1.6 |
15.5 |
18~22 |
50 |
| HPS-PP-SX-019-BK-P |
19 |
22.2 |
1.6 |
15.5 |
19~22 |
50 |
| HPS-PP-SX-021-BK-P |
21 |
24.6 |
1.8 |
18.5 |
21~25 |
50 |
| HPS-PP-SX-022-BK-P |
22 |
25.6 |
1.8 |
18.5 |
22~25 |
50 |
| HPS-PP-SX-026-BK-P |
26 |
29.6 |
1.8 |
21.5 |
26~30 |
50 |
| HPS-PP-SX-028-BK-P |
28 |
31.8 |
1.9 |
22.5 |
28~32 |
50 |
| HPS-PP-SX-030-BK-P |
30 |
34 |
2 |
23 |
30~35 |
50 |
| HPS-PP-SX-032-BK-P |
32 |
36 |
2 |
23 |
32~38 |
50 |
| HPS-PP-SX-035-BK-P |
35 |
39 |
2 |
24 |
35~40 |
50 |
| HPS-PP-SX-038-BK-P |
38 |
42 |
2 |
24 |
38~43 |
50 |
| HPS-PP-SX-040-BK-P |
40 |
46 |
2.8 |
25 |
40~45 |
50 |
| HPS-PP-SX-042-BK-P |
42 |
48 |
3 |
26 |
42~48 |
50 |
| HPS-PP-SX-048-BK-P |
48 |
54 |
3 |
27 |
48~52 |
50 |
| HPS-PP-SX-050-BK-P |
50 |
56 |
3 |
27 |
50~55 |
50 |
| HPS-PP-SX-051-BK-P |
51 |
57 |
3 |
27 |
51~56 |
50 |
| HPS-PP-SX-060-BK-P |
60 |
66 |
3 |
26.5 |
60~65 |
25 |
| HPS-PP-SX-063-BK-P |
63 |
69 |
3 |
27 |
63~70 |
25 |
| HPS-PP-SX-068-BK-P |
68 |
74 |
3 |
30 |
68~72 |
20 |
| HPS-PP-SX-074-BK-P |
74 |
83 |
5.2 |
47.5 |
74~80 |
20 |
| HPS-PP-SX-080-BK-P |
80 |
89 |
4.5 |
40.5 |
80~85 |
20 |
| HPS-PP-SX-088-BK-P |
88 |
98 |
5 |
43 |
88~95 |
10 |
| HPS-PP-SX-100-BK-P |
100 |
110 |
5 |
45 |
100~110 |
10 |
1. Excavators and Earthmoving Equipment
Protects hydraulic lines that drag across boom structures, hose guides and attachment frames.
2. Agricultural implements
Addresses cover damage caused by vibration, repeated articulation and contact with metal brackets or field debris.
3. Forklifts and lifting systems
Covers moving hoses around masts, rollers and lift mechanisms where clearance is limited.
4. Factory Hydraulic Power Systems
Adds a serviceable wear layer at machine beds, floor crossings, clamps and maintenance zones.
5. Grouped Hose and Cable Routes
Keeps compatible service lines organized while reducing abrasion against enclosures and adjacent components.
Select the appropriate spiral wrap size based on the maximum outside diameter of the hydraulic hose or complete bundle, ensuring a proper fit without excessive compression. Consider the routing path, bend radius and wear conditions when adjusting spiral spacing and overlap to balance protection and flexibility. Operating temperature, fluid exposure, installation clearance and equipment movement should also be evaluated to ensure suitability for the intended application.
• Size & Dimensions - Spiral inside diameter, band width, wall thickness and pitch can be customized to match hose or bundle dimensions and installation requirements.
• Coverage & Length - Custom coil lengths and pre-cut sections are available to meet specific coverage and installation requirements.
• Colors & Identification - Standard and custom colors are available, with product identification and batch labeling options to meet project requirements.
• Packaging - Various packaging options are available according to customer requirements.
HPS-PP-SX-P complies with the applicable requirements of RoHS and REACH regulations, supported by relevant material compliance test reports.Product quality is controlled through material verification, dimensional inspection and manufacturing process monitoring to ensure consistent construction and reliable external mechanical protection.
• Resin and color control - Incoming PP material and identification are checked against the approved production requirement.
• Band and pitch inspection - Inside diameter, flat profile, wall section and spiral spacing are monitored during manufacture.
• Installation check - Samples are wrapped around the approved hose or gauge to evaluate fit, overlap and practical handling.
• Edge and surface review - Sharp edges, cracks, contamination, uneven forming and unacceptable color variation are screened.
• Shipment release - Part number, dimensions, coil length, quantity, labels and packing are verified before dispatch.
